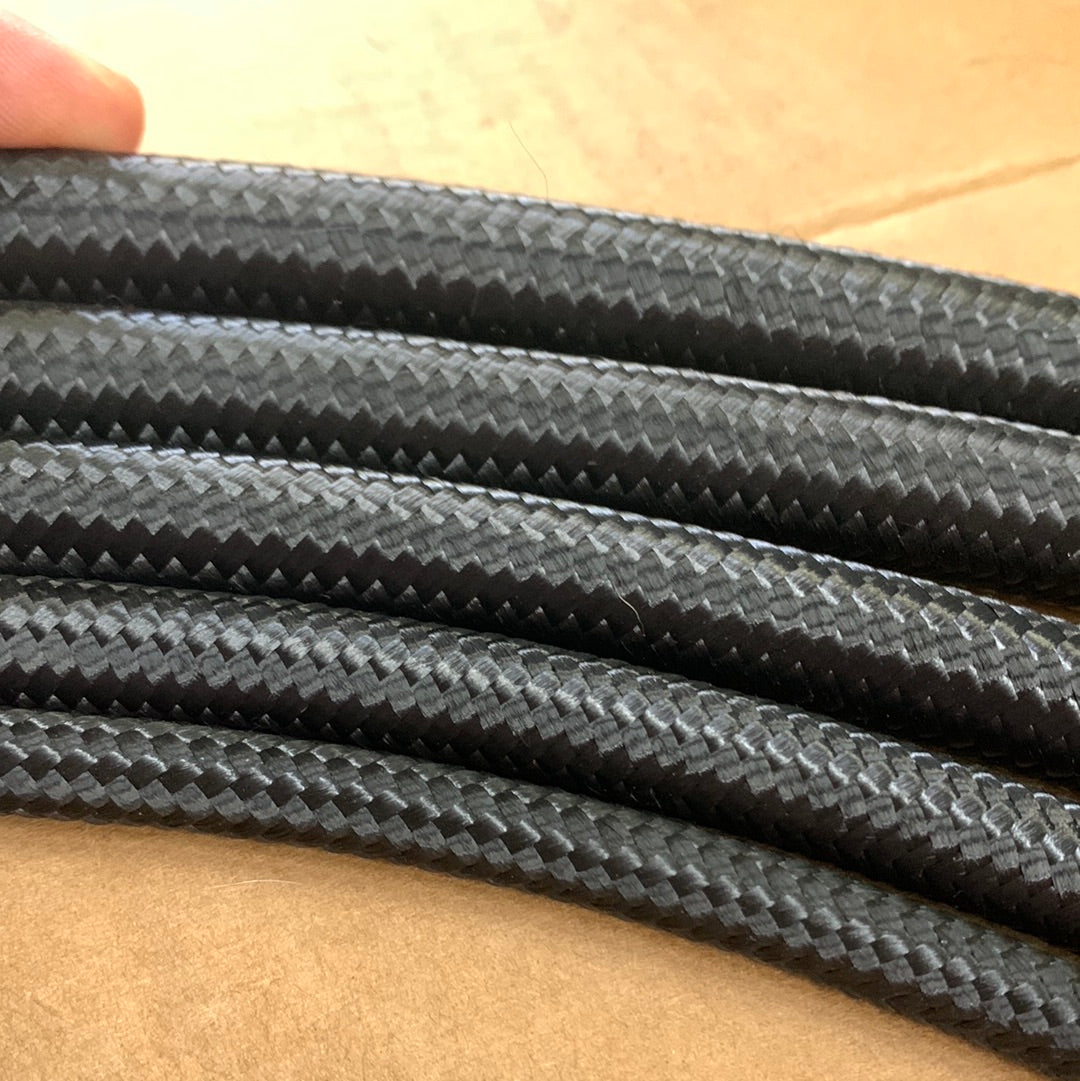

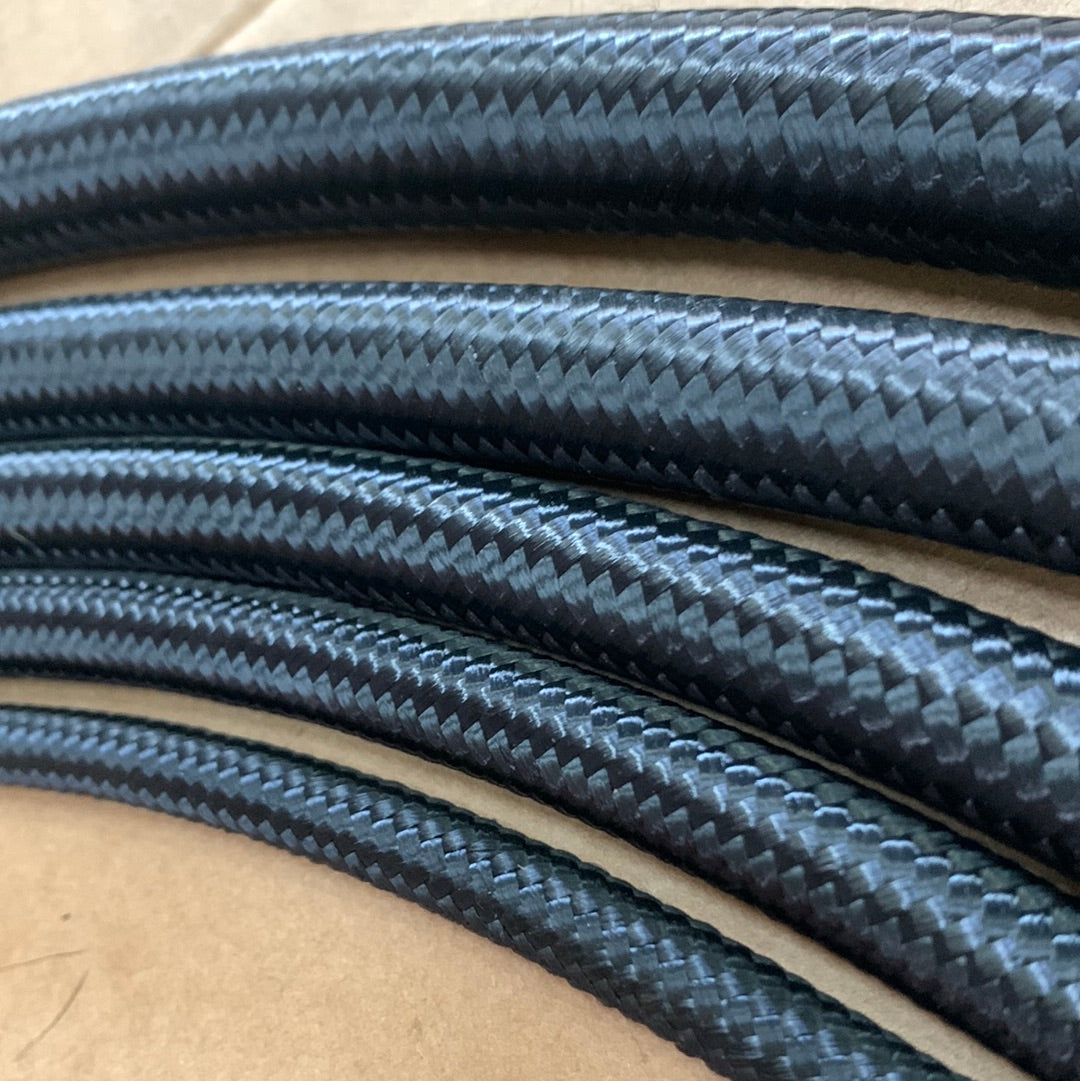

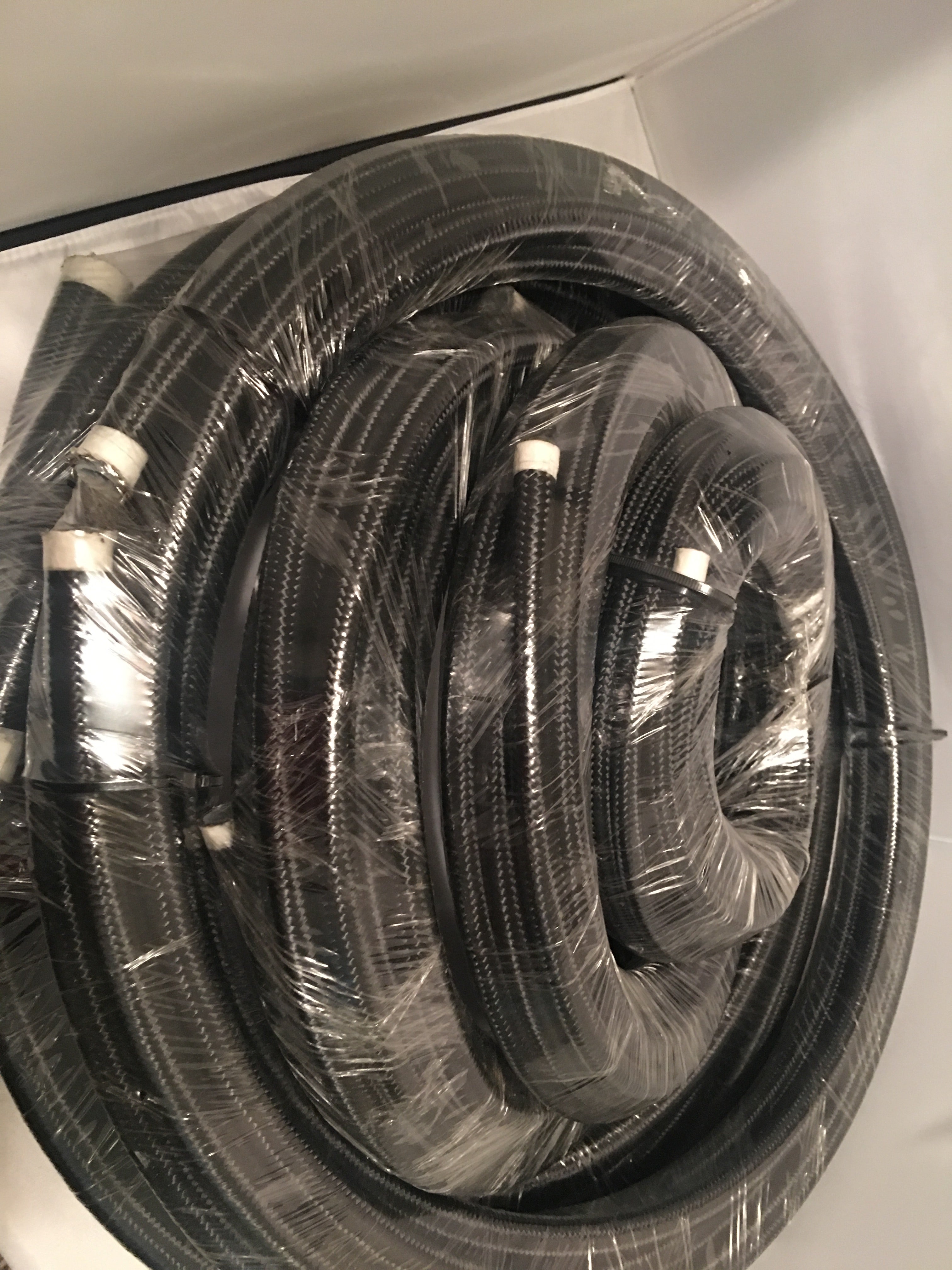

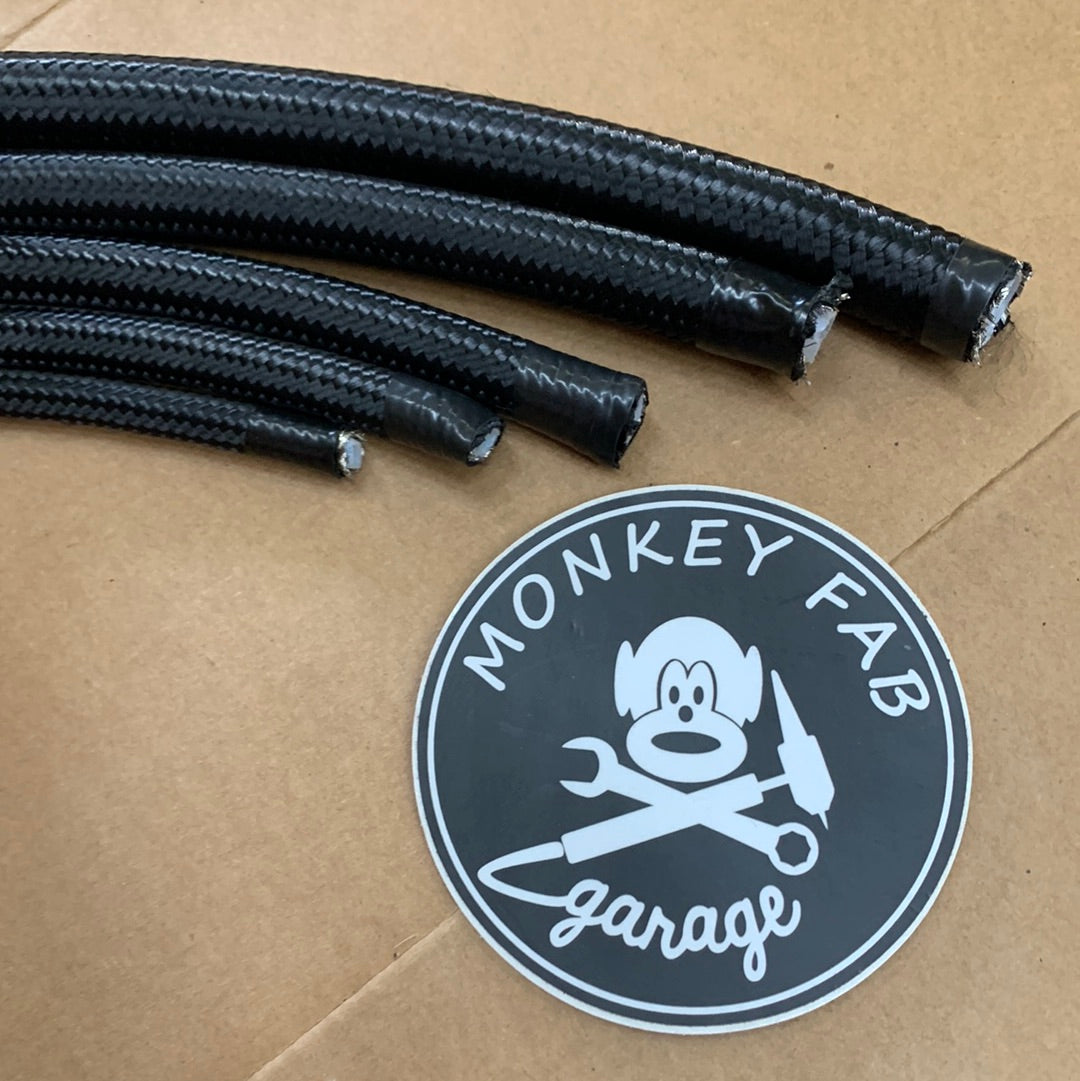

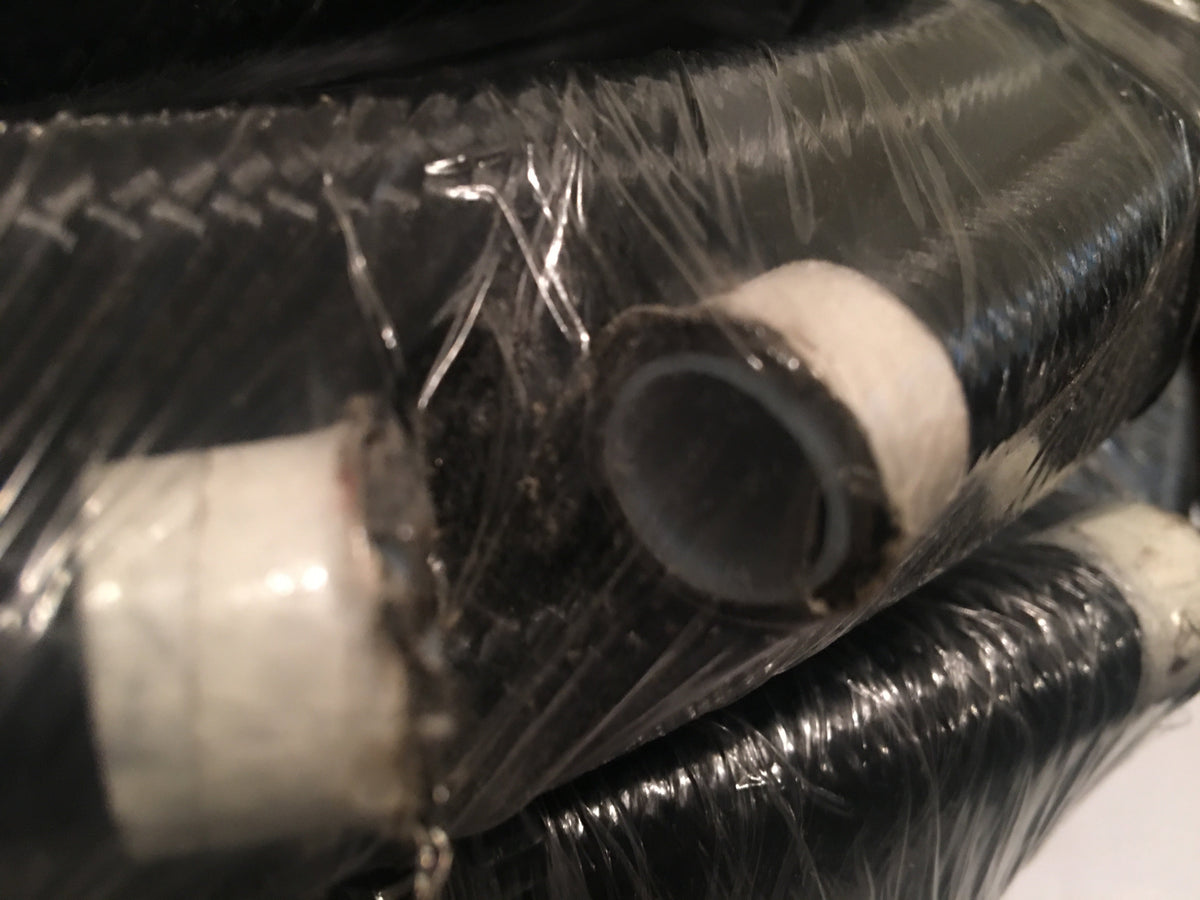

PTFE AN Hose Black (by the foot)
-4
$4.02
Sale price
$4.02
Regular price
Skip to product information
PTFE AN Hose Black (by the foot)
$4.02
Sale price
$4.02
Regular price
MADE TO WORK WITH OUR FITTINGS. MIX AND MATCH AT YOUR OWN RISK!
Use only the correct "PTFE AN Hose Ends Fittings Black" with this hose, linked below:
PTFE AN Hose Ends Fittings Black
PTFE hose sold by the foot.

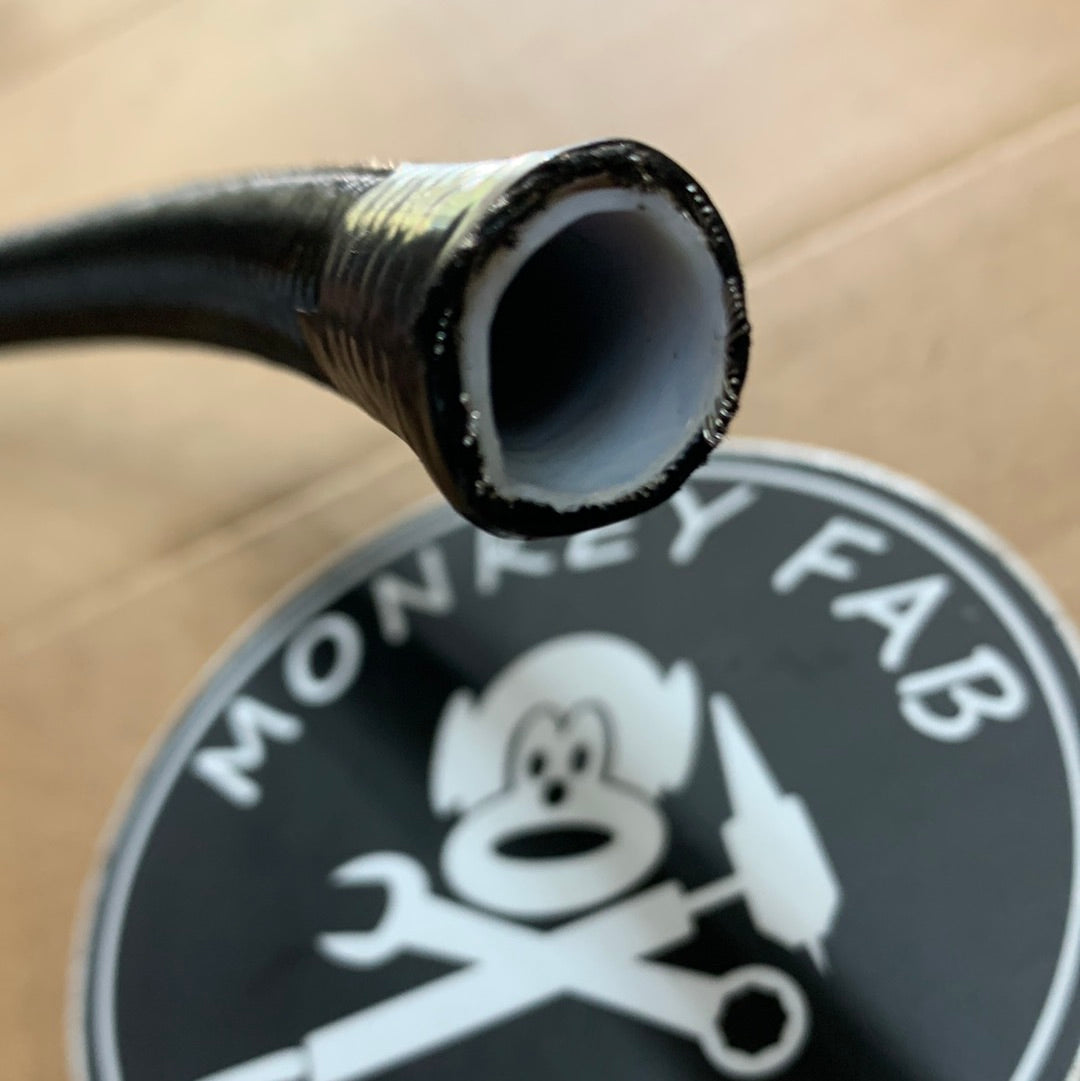

PTFE inner tube+SS braided layer('－60—200℃) non-conductive
| Item | ID | OD | W.P. | B.P | Min.B.R. | Min B.R. | |
| mm | mm | psi | psi | mm | inches | ||
| -3 | 3.56 | 6.35 | 4000 | 12000 | 50.8 | 2 | |
| -4 | 4.83 | 8 | 4000 | 12000 | 63.5 | 2.5 | |
| -6 | 8.13 | 10.9 | 3000 | 10000 | 88.9 | 3.5 | |
| -8 | 10.67 | 13.7 | 2500 | 8000 | 101.6 | 4 | |
| -10 | 12.95 | 16 | 2000 | 6000 | 114.3 | 4.5 | |
| -12 | 16.26 | 19.3 | 1000 | 4000 | 139.7 | 5.5 | |
| -16 | 22.2 | 25.8 | 1000 | 4000 | 200.2 | 7.88 | |
